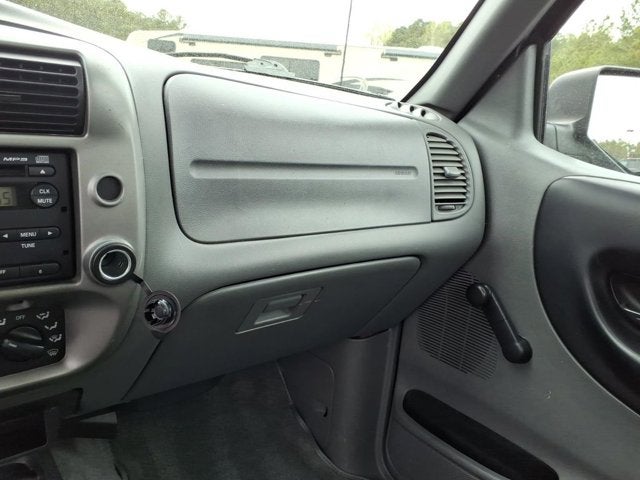

• Glove Box
• SecuriLock anti-theft system

• Rear wheel drive

2.3L DOHC 16-VALVE I4 ENGINE

• (STD)

• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Temporary Spare Tire
• Steel Wheels
• Power Steering
• Front Disc/Rear Drum Brakes
• Intermittent Wipers
• Variable Speed Intermittent Wipers

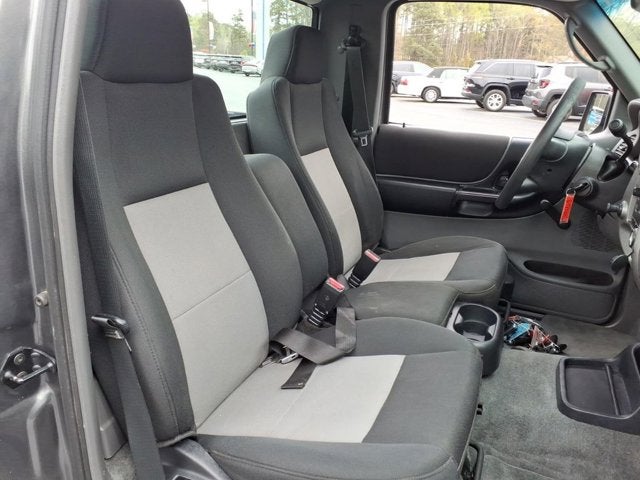

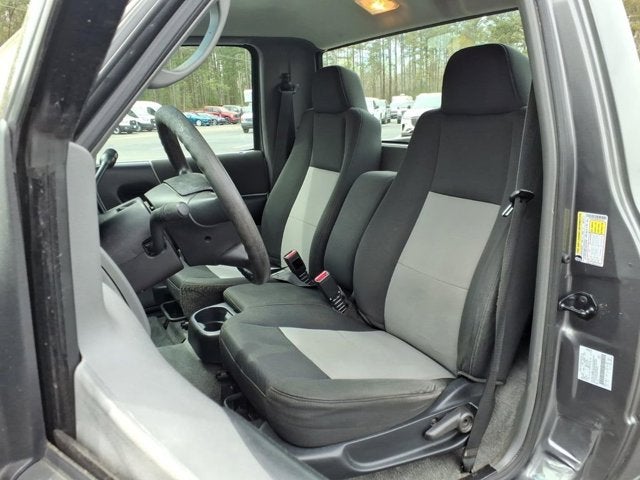

• Split Bench Seat
• Tire Pressure Monitor
• Immobilizer

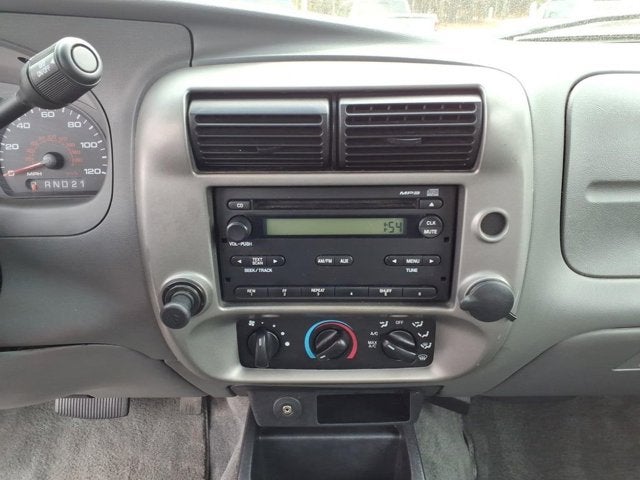

• AM/FM Stereo

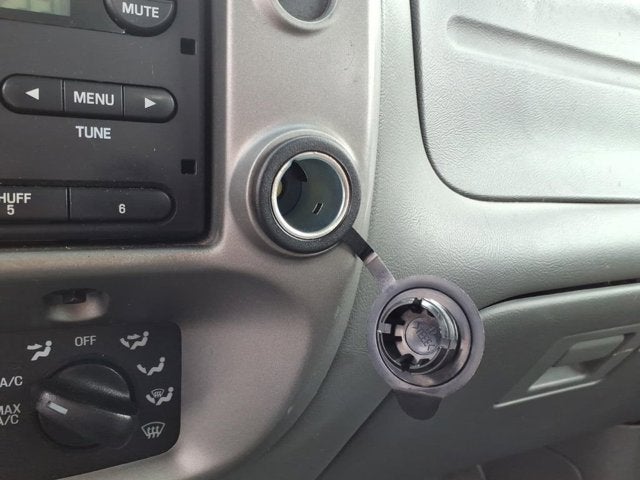

• Power Outlet
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor

• Mileage
• EPA Fuel Economy Est - City (MPG): 21
• EPA Fuel Economy Est - Hwy (MPG): 26
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1650
• Cooling System
• Total Cooling System Capacity (qts): 6.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2000
• Gross Axle Wt Rating - Rear (lbs): 2550
• Curb Weight - Front (lbs): 1757
• Curb Weight - Rear (lbs): 1273
• Gross Vehicle Weight Rating Cap (lbs): 4380
• Gross Combined Wt Rating (lbs): 4800

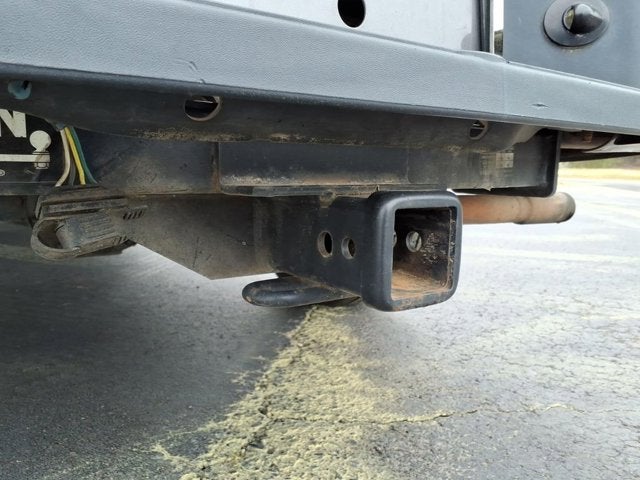

• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1580
• Dead Weight Hitch - Max Tongue Wt. (lbs): 158
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1580
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 158
• Suspension
• Suspension Type - Front: SLA w/Coil Springs
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2000
• Spring Capacity - Rear (lbs): 2550
• Axle Type - Front: Independent SLA
• Axle Type - Rear: Ford Semi-Floating
• Axle Capacity - Front (lbs): 2400
• Axle Capacity - Rear (lbs): 2750
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.28 x 0.39
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9.00 x 1.75
• Tires
• Front Tire Size: P225/70R15
• Rear Tire Size: P225/70R15
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): 1594
• Rear Tire Capacity (lbs): 1594
• Spare Tire Capacity (lbs): 1984
• Revolutions/Mile @ 45 mph - Front: 765
• Revolutions/Mile @ 45 mph - Rear: 765
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 15 x 7
• Rear Wheel Size (in): 15 x 7
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 22.0
• Turning Diameter - Curb to Curb (ft): 37.7
• Turning Diameter - Wall to Wall (ft): 39.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 17
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 111.5
• Length, Overall w/o rear bumper (in): 189.4
• Width, Max w/o mirrors (in): 69.3
• Height, Overall (in): 66.2
• Overhang, Front (in): 34.0
• Overhang, Rear w/o bumper (in): 44.0
• Front Bumper to Back of Cab (in): 107.6
• Cab to Axle (in): 37.9
• Cab to End of Frame (in): 78.5
• Ground to Top of Load Floor (in): 29.7
• Frame Width, Rear (in): 33.0
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 7.9

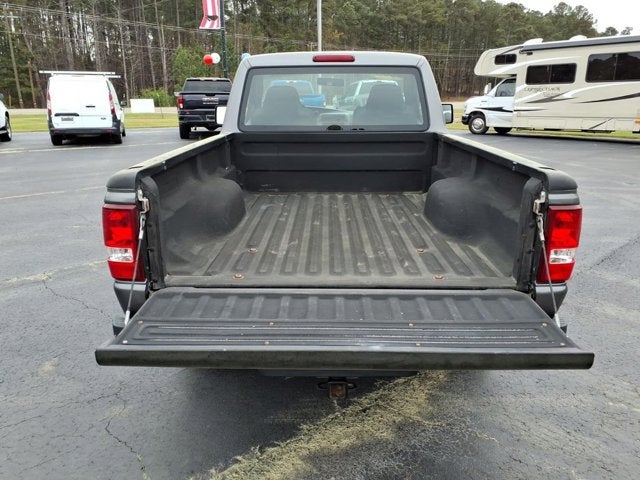

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.7
• Cargo Box Width @ Top, Rear (in): 54.4
• Cargo Box Width @ Floor (in): 54.4
• Cargo Box Width @ Wheelhousings (in): 40.5
• Cargo Box (Area) Height (in): 16.5
• Tailgate Width (in): 52.0
• Cargo Volume (ft³): 37.4
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 39.2
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 54.5
• Front Hip Room (in): 52.7
• Summary

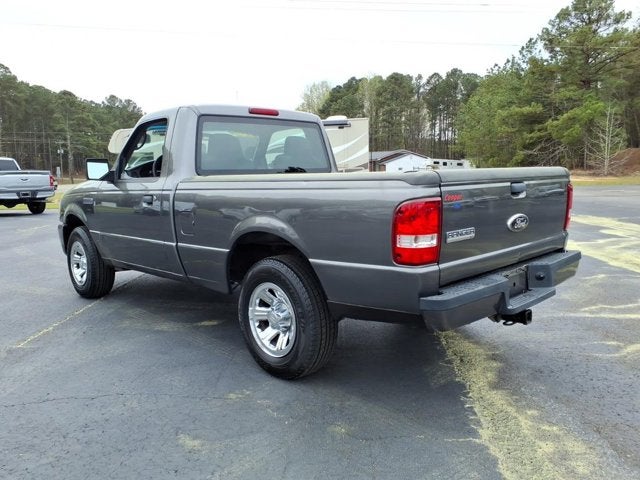

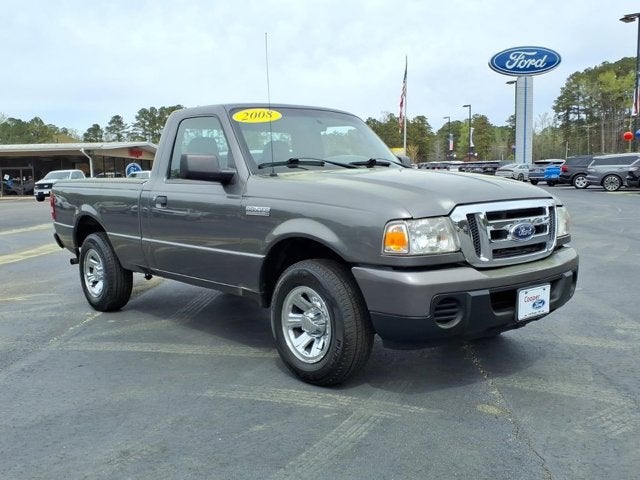

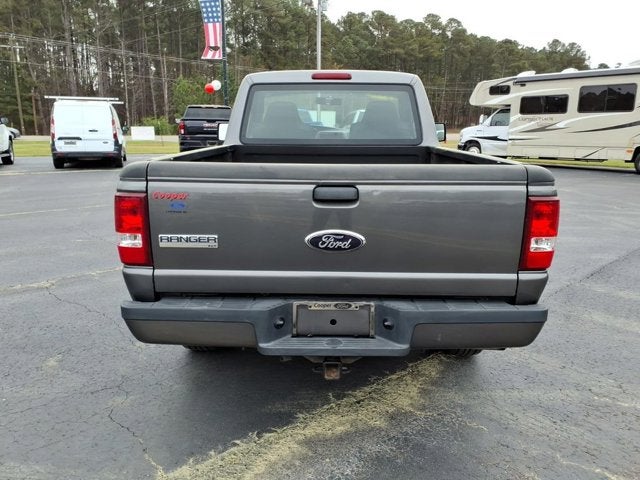

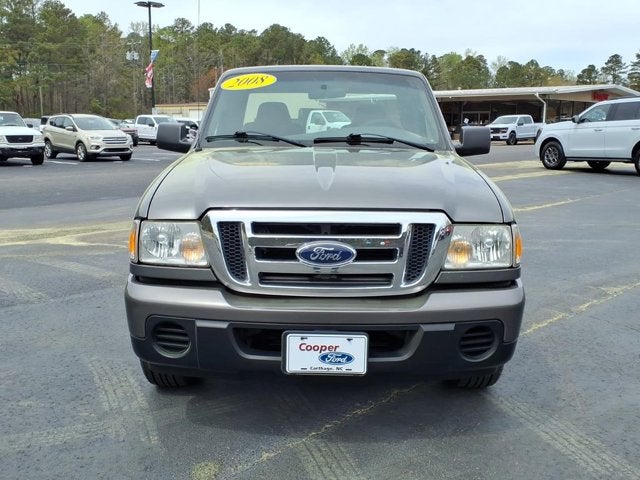

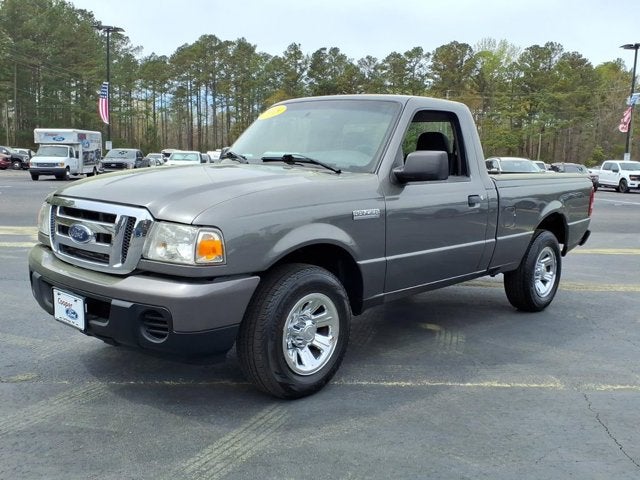

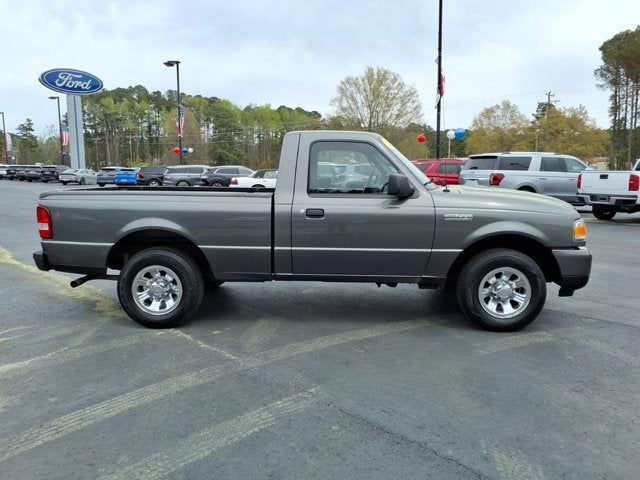

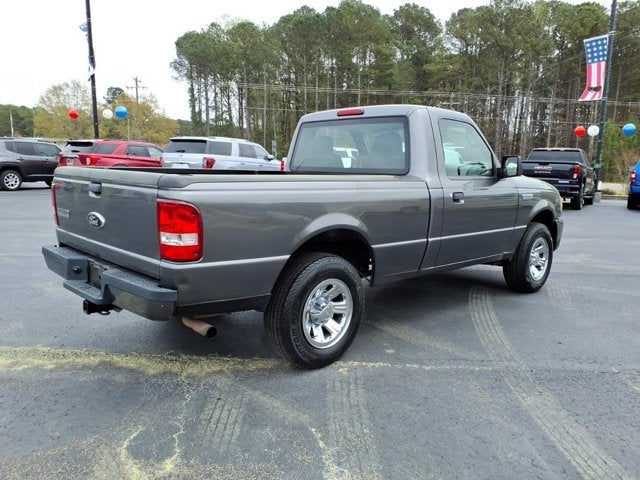

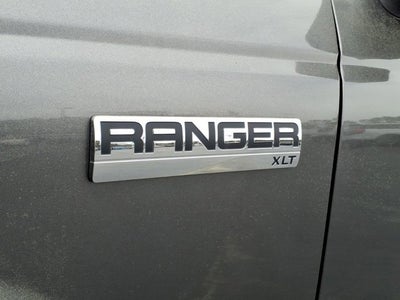

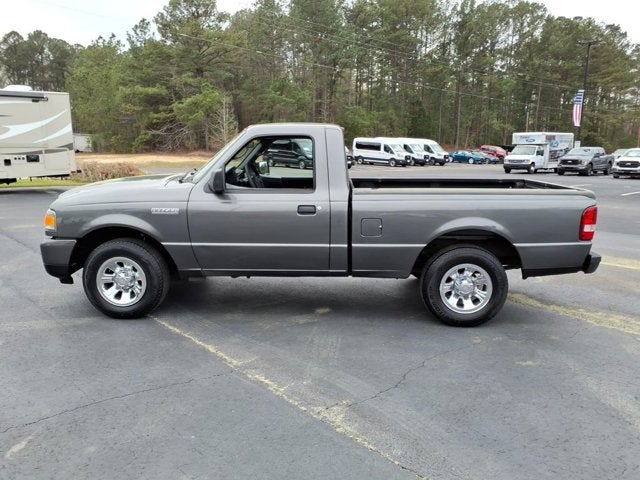

• Vehicle Name: Ford Ranger
• Body Style: Reg Cab 6' Styleside
• Body Code: 111.5" WB
